Model
|
GLS-125000G
|
GLS-242500G
|
|
AC Input
|
Voltage
|
100-240V AC
|
100-240V AC
|
|
Input current
|
0.33A/230V AC
|
0.16A/230V AC
|
|
Frequency
|
47-63 Hz
|
47-63 Hz
|
|
Efficiency
|
82% typical
|
85% typical
|
|
Inrush current
|
30A/230V AC
|
30A/230V AC
|
|
Leakage current
|
<0.05A/240V AC
|
<0.05A/240V AC
|
|
DC Output
|
Voltage
|
12V
|
24V
|
|
Current
|
0-5000mA
|
0-2500mA
|
|
Rated Power
|
60W
|
60W
|
|
Ripple&noise
|
120mvp-p
|
100mvp-p
|
|
Setup rise hold up time
|
500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
|
|
Protection
|
Over Load
|
120%Max, hiccup mode auto recovery after fault condition is removed
|
|
Short Circuit
|
Auto recovery
|
|
Environment
|
Store Temperature
|
-20-85°C
|
|
Wokring Temperature
|
0--50°C
|
|
Operating Humidity
|
20%-80%RH
|
|
Safty
|
CE
|
Compliant to EN 60950-1:2006; EN61000-6-3:2001;
|
|
EN 55022:2006+A1:2007; EN61000-4-2/-3;
|
|
EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003
|
|
RoHs
|
Free from lead, Cadmium, Mercury, Hexavalent
|
|
Chromium and/or PBB &PBDE
|
|
others
|
Product dimension
|
118*53*34mm
|
|
Weight
|
0.35g/pc(including AC cord)
|
|

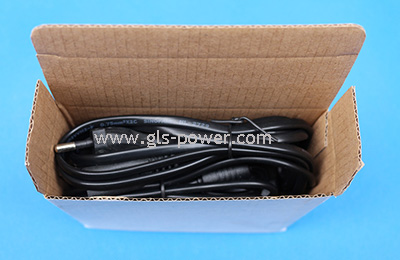

Packing
|
30pcs/ctn,48.5*35*21cm
|
|
DC connector size
|

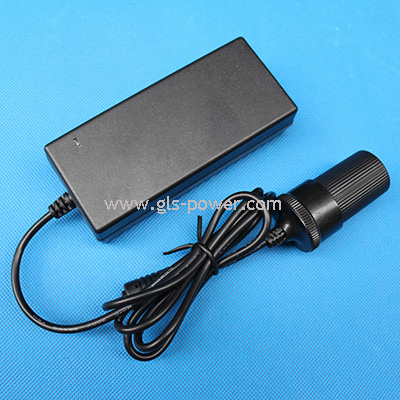

5.5x2.1, 5.5x2.5. 3.5x1.35 or cigarette lighter socket
|
|
Cable length
|
1.2M or others
|
