Specification:
Model |
GLS-055000G |
GLS-123000G |
GLS-241500G |
|
AC Input |
Voltage |
100-240V AC |
100-240V AC |
100-240V AC |
Input current |
0.33A/230V AC |
0.33A/230V AC |
0.33A/230V AC |
|
Frequency |
47-63 Hz |
47-63 Hz |
47-63 Hz |
|
Efficiency |
68% typical |
82% typical |
85% typical |
|
Inrush current |
30A/230V AC |
30A/230V AC |
30A/230V AC |
|
Leakage current |
<0.5A/240V AC |
<0.5A/240V AC |
<0.5A/240V AC |
|
DC Output |
Voltage |
5V |
12V |
24V |
Current |
0-5000mA |
0-3000mA |
0-1500mA |
|
Rated Power |
25W |
36W |
36W |
|
Ripple&noise |
50mvp-p |
100mvp-p |
120mvp-p |
|
Setup rise hold up time |
500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load |
|||
Protection |
Over Load |
120%Max, hiccup mode auto recovery after fault condition is removed |
||
Short Circuit |
Auto recovery |
|||
Environment |
Store Temperature |
-20-85°C |
||
Wokring Temperature |
0--50°C |
|||
Operating Humidity |
20%-80%RH |
|||
Safty |
CE |
Compliant to EN 60950-1:2006; EN61000-6-3:2001; |
||
EN 55022:2006+A1:2007; EN61000-4-2/-3; |
||||
EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003 |
||||
RoHs |
Free from lead, Cadmium, Mercury, Hexavalent |
|||
Chromium and/or PBB &PBDE |
||||
others |
Product dimension |
115*50*30mm |
||
Weight |
0.3kg/pc |
|||

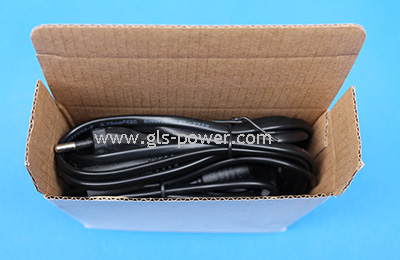

Packing |
100pcs/ctn,41.5*40*30cm |
|||
DC connector size |
5.5x2.1, 5.5x2.5. 3.5x1.35 or others |
|||
Cable length |
1.2M or others |
