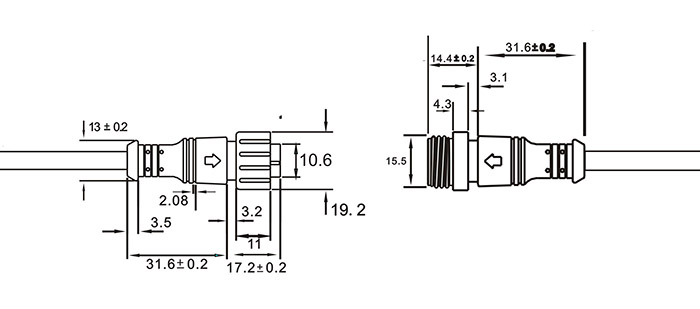

Dimension Drawing:
Specification:
Pins
2 pin
3 pin
4 pin
5 pin
Voltage rating
300V
220V
60V
60V
Current rating
15A
12A
8A
6A
Wire gauge
<=2.0mm²
<=1.5mm²
<=1.0mm²
<=0.75mm²
Cable OD
<=10.0mm
Mechanical Life
2000 mating cycles
Operating Tempt.
-20°~+80°
IP rating
IP 67
Insulation resistance
>=100mΩ
Contact resistance
<=5mΩ
Connector material
PBT connector, aluminium alloy screw cap
Cable material
PVC/Rubber or others
