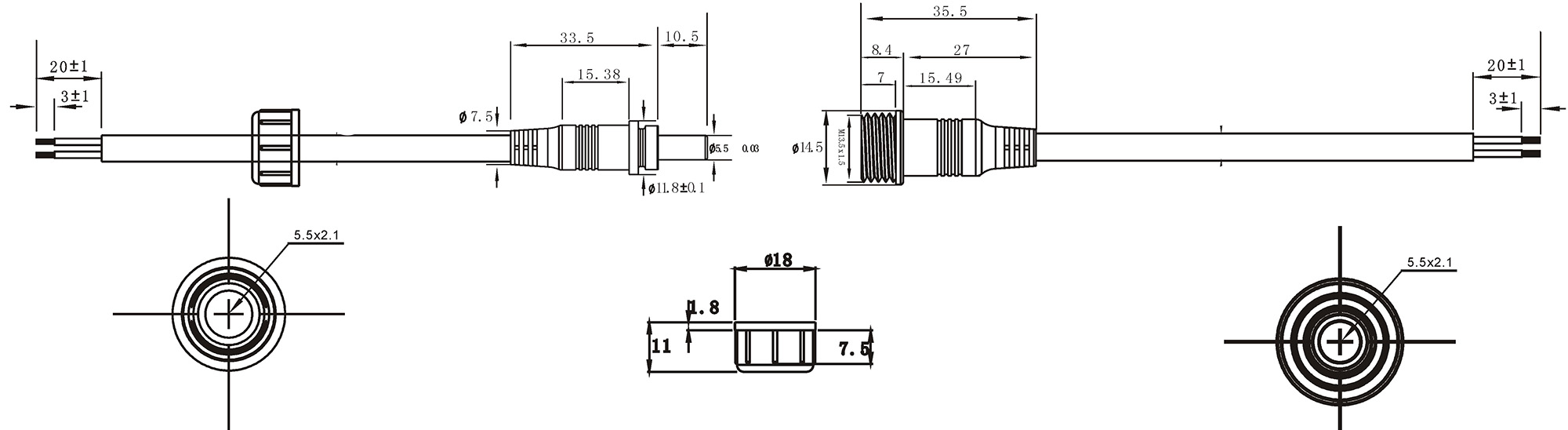

Dimension drawing:
Specification:
DC
connector size
5.5x2.1
3.5x1.35
Voltage rating
110V
110V
Current rating
4A
4A
Wire gauge
<=0.5mm²
<=0.5mm²
Cable OD
<=5.0mm
Mechanical
Life
1500 mating cycles
Operating
Tempt.
-20°~+80°
IP rating
IP 67
Insulation
resistance
>=100mΩ
Contact
resistance
<=5mΩ
Connector
material
PVC
Cable material
PVC
