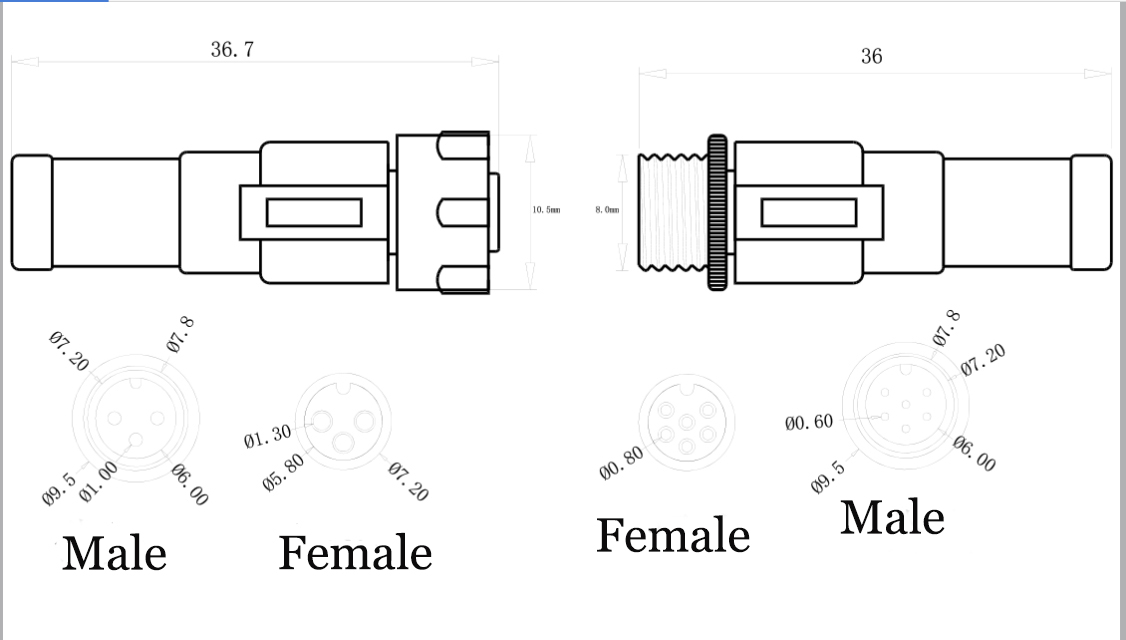

Dimension drawing:
Specification:
Pins
2 pin
3 pin
4 pin
5 pin
6 pin
Voltage rating
110V
110V
60V
30V
30V
Current rating
4A
2A
2A
1.5A
1.5A
Wire gauge
<=0.5mm²
<=0.3mm²
<=0.3mm²
<=0.2mm²
<=0.2mm²
Cable OD
<=5.4mm
Mechanical Life
1500 mating cycles
Operating Tempt.
-20°~+80°
IP rating
IP 67
Insulation resistance
>=100mΩ
Contact resistance
<=5mΩ
Connector material
PA66
Cable material
PVC/Rubber
