1.Plug and play convenient for use
2.IP 65 waterproof
3.Mini size, max 9mm
4.Customized cable color, length and size
1.Plug and play convenient for use
2.IP 65 waterproof
3.Mini size, max 9mm
4.Customized cable color, length and size
* For any questions, you can contact Customer Service and get a response within 24-hours.

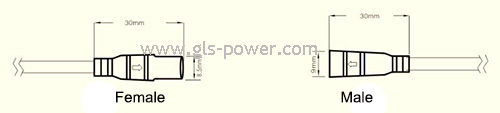

Dimension drawing:
Specification:
Pins
2 pin
3 pin
Voltage rating
110V
110V
Current rating
0-3A
0-2A
Wire gauge
<=0.3mm²
<=0.2mm²
Cable OD
<=3.5mm
Mechanical Life
1500 mating cycles
Operating Tempt.
-20°~+80°
IP rating
IP 65
Insulation resistance
>=100mΩ
Contact resistance
<=5mΩ
Connector material
PVC
Cable meterial
PVC
